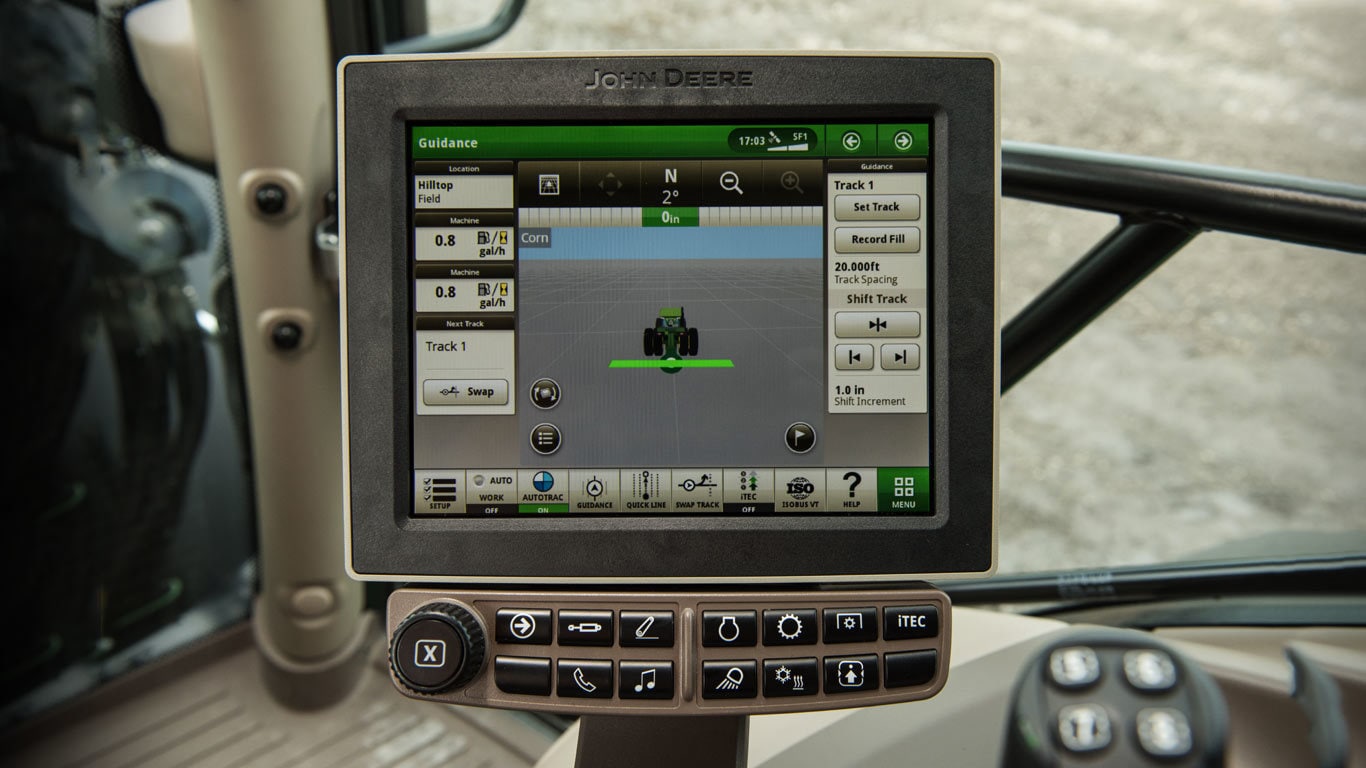

4200 COMMAND CENTER DISPLAY

Sometimes a job on the farm does not require intense Precision Ag management practices. When this is the case, the 4200 CommandCenter™ is just the tool for the job. The 4200 offers the ability to run core Precision Ag features like AutoTrac™ guidance, Documentation, Section Control, and Data Sync.

There are two levels of activations that can be ordered on the 4200. The first is the CommandCenter AutoTrac Activation, enabling operators to consistently drive the same guidance path pass to pass. The second is the 4200 Section Control and Data Sync Activation plus CommandCenter AutoTrac Activation. This combines the ability to use AutoTrac on a machine with the value of Section Control, eliminating overlap on critical field operations, and provides the use of Data Sync.

Data Sync enables operators to automatically send data to John Deere Operations Center. Producers can analyze the data from completed fields or view where field work is in process, making it easier for them to make operational decisions. Data is available to analyze through the John Deere Operations Center from any internet-connected device, allowing producers to make important production decisions and giving operations the ability to invoice work recently completed.

The Generation 4 CommandCenter was designed to provide a consistent user experience by providing full-screen viewing of more run page modules, shortcut keys, and precision agriculture capabilities.

Expect easier set-up, along with increased operator confidence, thanks to a simple, customizable interface. The improved design of the Generation 4 CommandCenter also aids in an optimal operating experience and maximizes uptime.

In order to increase your efficiency, take advantage of the following features offered by the Generation 4 CommandCenter:

Layout manager

Layout manager selection page

Layout manager module build

• Easily create page views that meet your needs and that are also equipped with default run pages.
  • Users and access allow the owner or manager to lock out certain functions to prevent operators from accessing or changing settings with a defined four-digit code.
  • Gather on-screen help by selecting the help icon on the shortcut bar on the bottom of every page.

Machine monitor

Machine monitor page

• The Machine Monitor application provides you instantaneous readings about the status or condition of your machine.
• This application shows parameters such as engine speed, coolant temperature, and ground speed.

Work monitor

Work monitor page

• The Work Monitor application displays performance information about the task being performed by the machine.
• You are shown averages, totals, and productivity of the machine, such as area worked, average working speed, and fuel usage.
• Work setup places the settings needed to properly setup features such as AutoTrac, Documentation, and Section Control in a single location. Settings include:
• Client, farm, and field
• Crop type
• Machine and implement dimensions
• Variety/hybrid and planting/seeding rates
• Variable rate prescriptions
• Product and application rates
• Application rates through the implement screens

Video capability

• Machines equipped with a 4200 CommandCenter are equipped with one video input, and the 4600 CommandCenter has four video inputs.
  • You have the ability to set a variety of triggers. With each trigger, the image will then appear on the display.

Video looping supported with Gen 4 4600 CommandCenter Display and 4640 Universal Display

Scan through videos with video looping

• This feature enables users to scan or loop through all of the available video feeds for a specified duration. The default scan time is set to 7 seconds per image. The scan time is customizable per image allowing for consistent visibility to all video feeds.

Flags

Create flags to mark items in the field

• Mark areas in the field that need special attention such as rocks, tile lines, or weed pressure.
  • Flags previously recorded on the Gen 4 or GreenStar™ 3 2630 Display can be transferred between monitors.


Field boundaries

Boundary creation from coverage

Headland creation

• Manually drive field boundaries with the Generation 4 CommandCenter or import existing boundary information from the GreenStar 3 2630 Display or John Deere Operations Center. Gen 4 documentation data can be used to create boundaries from coverage within the John Deere Operations Center.

Automatic base station switching

Setup base stations in Fields and Boundaries applications

• Customers using John Deere RTK Radio 450 or 900 can link a base station to a desired client,/ farm,/ or field. This allows automatic switching to the associated base station when changing fields. The ability to import base station assignments into Operations Center and send back to machines will be available at a later date.

Dual-display mode

Dual display

• Generation 4 CommandCenter may be configured to run with the following John Deere displays connected at the cornerpost of a John Deere tractor:
• GreenStar 2 1800 Display
• GreenStar 2 2600 Display
• GreenStar 3 2630 Display
• 4640 Universal Display
• 4240 Universal Display

NOTE: Vehicle applications will always be located on the Gen 4 CommandCenter.

The  ability to remotely view the machine’s settings, performance, yield, acres, and other information is highly valuable when managing or supervising an operation. It is imperative that your equipment keeps running productively and that you are enabled to provide remote support to improve the quality and efficiency of work while saving time and money. RDA enables you to get help with machine settings or identify a problem and receive assistance in navigating through the steps needed to resolve the issue.

Value of RDA:

• Improved confidence in precision farming applications for all operators
• Increased productivity with quicker problem resolution
• Improved service from John Deere dealer and support personnel
• Increased profitability by keeping equipment moving
• Reduced labor and travel costs
• With the 19-1 software update, the Gen 4 displays no longer require the operator to accept for remote view

RDA on desktop computer

RDA on smartphone

RDA showing 4600 CommandCenter™ Display – remote view

RDA showing GreenStar™ 3 2630 Display – remote view

Gen 4 applications and subscriptions allow data to be transferred from the display to the John Deere Operations Center for job reporting and analysis using Wireless Data Transfer (WDT) or Data Sync.

• With WDT, you can manually send data to the John Deere Operations Center for review.
• Data Sync is enabled with purchase of the Premium or Automation Activation/Subscription, automatically sending your data to the Operations Center every 30 seconds, avoiding the need for manually exporting the data.

Wirelessly sending data helps you save time and money while increasing productivity. Wirelessly transfer setup, prescription, and documentation files securely between office, mobile devices, and 4640/4240 Universal Display or 4600/4200 CommandCenter™ Display, eliminating the need for USB transfer. This increases your uptime and productivity, reduces the risk of data loss, and enables easy data sharing and more timely decision making.

Through the John Deere Operations Center, you are in control and can easily share files with a John Deere dealer and other trusted advisers.

NOTE: For users in areas of poor cellular coverage, data is able to be exported using a USB flash drive.

The Generation 4 CommandCenter™ and Gen 4 Universal Displays display are an AEF ISOBUS compatible display.

An easy plug and play between implements, displays, tractors, and other products is required today in daily business. This is why within agriculture and forestry, an industry standard, ISOBUS, is used for communication between these products.

From the ag industry, the Agricultural Industry Electronics Foundation (AEF) was initiated in 2008 to have a common forum among manufacturers to define the ISOBUS standard further, define and conduct ISOBUS tests, accelerate adoption, label compatible products, and to communicate this to dealers and customers. John Deere is one of the seven founding members of AEF and is very engaged in the organization.

To better ensure ISOBUS compatibility, the AEF developed new functionalities, i.e., auxiliaries (AUX) and Task Controller Section Control (TC-SC,) in addition to the well-known universal terminal (UT). They are also the basis for the certification of ISOBUS products. An ISOBUS functionality can be described as an independent ISOBUS product and the concept is extendable for later additions of functionalities.

Gen 4 CommandCenter and Gen 4 Universal Displays support the following ISOBUS features:

• 4600/4200 CommandCenter and 4640/4240 Universal Display:
  • Universal Terminal (UT)
    -> ISOBUS sprayer, seeder, planter, fertilizer spreader, manure applicator, and many other implements can be operated through the UT functionality.
  • Task Controller Section Control (TC-SC)
    -> With TC-SC, ISOBUS compliant implements like sprayers, seeders, planters, fertilizer spreaders, and manure tankers can be used with automatic Section Control.
  • Task Controller Basic (TC-Bas)
    -> With TC-Bas, documentation with ISOBUS compliant implements in the standard data format of ISOXML is possible. Also, totals like area, amount, etc. are recorded directly from the implement.
  • Task Controller geo-based (TC-Geo)
    -> With TC-Geo, location-based documentation with ISOBUS compliant implements in the standard data format of ISOXML is possible. Also, Client, Farm, Field, Boundary, Products, Crops (incl. Varieties), Prescriptions, Operators, Tasks, Comments are recorded directly from the implement.
  • Auxiliary Control (AUX-N)
    -> With AUX-N, additional control elements that facilitate the operation of complex equipment, such as a joystick; also, the capability of controlling implement functions by means of an additional control element.

Gen 4 system page includes info on ISOBUS compatibility

Individual ISOBUS features with details are highlighted

To stay up to speed on which implement and product complies with which ISOBUS features, please visit the AEF website and sign up for the database. It combines tractor, sprayer, and display combination to determine compatibility.

Sign up and log in page to the AEF database – user is able to create an account and check on compatibility for products.

Over-the-air activations were enabled with the 18-1 software update to the Gen 4 displays. With that software update or newer, a John Deere dealer can send activations to a Gen 4 display without leaving the office. Over-the-air activations also eliminate the need to manually enter long activation codes like was done previously. This also eliminates multiple trips between the cab and the farm office to enter codes and verify completion.

NOTE: Over-the-air activations requires a current JDLink™ Connect subscription and Mobile Telematics Gateway (MTG). Planter and platform activations and subscriptions cannot be updated over-the-air.
