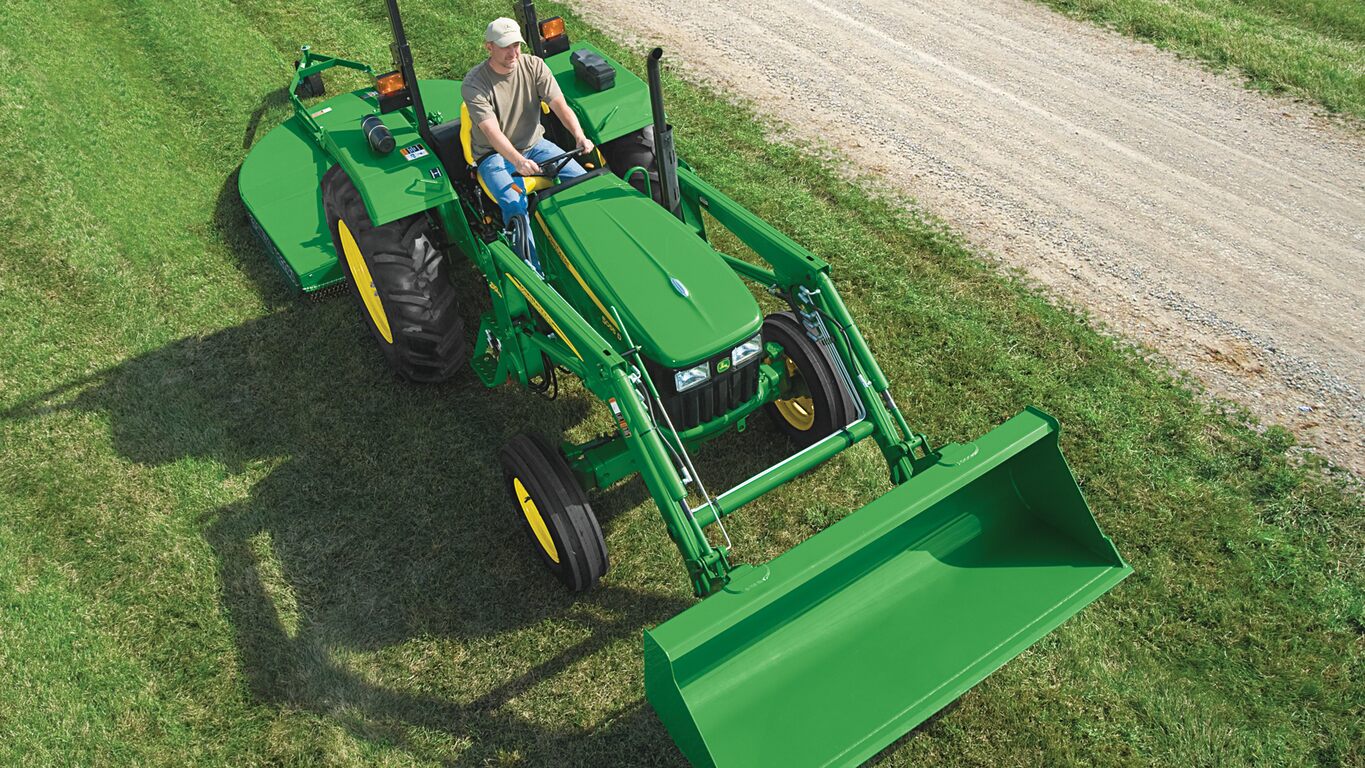

512 LOADER

Loader

  • Parking stands and couplers
  • Hydraulic hose and fittings
  • Quick-change attachment carrier
  • Nitro-carbonized (nitrite or black) cylinder rods

View Product Brochure



Features



Parking standParking stand
Parking stand couplerParking stand coupler

For parking the 512 Loader.



To see instructions on how to park the loader using the stands, go to parking stand section.

The John Deere quick-change attachment carrier allows one person to quickly change attachments without the use of tools.

Step 1
Retaining pinRetaining pin
Detail of indicated area with pin in storage areaDetail of indicated area with pin in storage area

With the bucket level or slightly rolled back, simply remove the retaining pins and place in storage position.

Step 2
Roll the attachment forward to disengage pinsRoll the attachment forward to disengage pins

Roll the attachment forward to disengage the lower pins.

Step 3
Lower attachment to ground-disengage top hooksLower attachment to ground-disengage top hooks

Lower the attachment to the ground to disengage the top hooks.

Step 4
Back away from attachmentBack away from attachment

Back away.

To install another attachment simply reverse these steps.

Specifications


Compare the specifications of up to 4 models

Key Specs 512-loader
Current Model
Maximum lift height (A)2850 mm
112 in.
Lift capacity at full heightMeasured at pivot (U)
1000 kg
2200 lb
Boom breakout forceMeasured at pivot (Y)
2019 kg
4451 lb
Bucket rollback force capacityAt ground-level line (ZZ)
1410 kgf
3109 lbf
Clearance at full height - bucket dumped (C)2140 mm
84 in.
Dump angle, degrees (E)43 degree (angle)
Rollback angle, degrees (G)30 degree (angle)
Tractor
Model5E Series 2WD Tractor
Front tire7.5-16 6 PR R1
Rear tire13.6-28 6 PR R1
Front axle configuration
Wheelbase
Pump capacity11.4 gpm
Rated pressure2828 psi
Loader
Base weight280.53 kg
618.46 lb
Leveling configuration
Bucket used1850 mm
73 in.
Bucket weight159 kg
351 lb
Lift capacity at full heightMeasured at pivot (U)
1000 kg
2200 lb
Measured at 800 mm ahead of pivot (V)
682 kg
1500 lb
Lift capacity at 59 in. (1500 mm)Measured at pivot (W)
1380 kg
3043 lb
Measured at 800 mm ahead of pivot (X)
980 kg
2161 lb
Boom breakout forceMeasured at pivot (Y)
2019 kg
4451 lb
Measured at 800 mm ahead of pivot (Z)
1335 kg
2944 lb
Bucket rollback force capacityAt maximum height (VV)
979 kgf
2158 lbf
At ground-level line (ZZ)
1410 kgf
3109 lbf
DimensionsMaximum lift height (A)
2850 mm
112 in.
At full height - bucket level(B)
2605 mm
102.5 in.
At full height - bucket dumped (C)
2140 mm
84 in.
Overall length (I+F), ft (m)3.79 m
12.416 ft
Overall height in carry position (J)1.442 m
4.75 ft
Digging depth (H)180 mm
7 in.
ReachAt maximum height (D)
615 mm
24 in.
At ground level - bucket level (F)
1730 mm
68 in.
Bucket angleDump angle, degrees (E)
43 degree (angle)
Rollback angle, degrees (G)
30 degree (angle)
Cycle times
