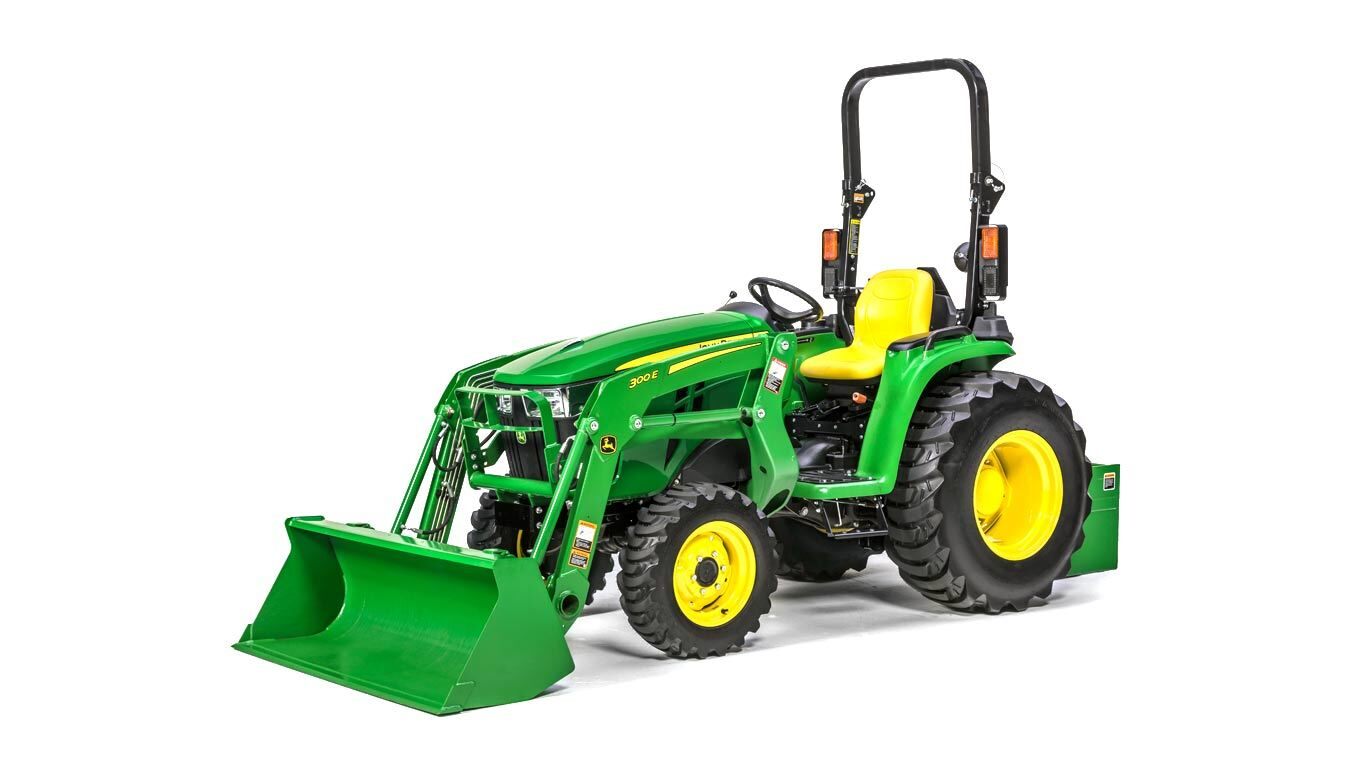

300E LOADER

Loader

  • Compatible with 3025D, 3035D, 3043D, 3025E, 3032E, and 3038E
  • Curved boom design improves operator visibility to front implements
  • Larger knee plates for strength and durability without sacrificing compact stance
  • 977 lbs (444 kg) of lift capacity

View Product Brochure



Features



End-of-pin lubricationEnd-of-pin lubrication
Closeup of grease fittingCloseup of grease fitting
Grease pointsGrease points

All pivot points on the loader have grease fittings that are accessible from the side of the loader to make greasing the loader much easier, ensuring that all grease points are more likely to be serviced. No more searching for grease points that are hard to find. Removing the grease gun from the grease fitting is not a problem as sufficient radius has been left to allow the grease gun tip to be rotated to the side for removal from the fitting.

Quik-Change attachment carrierQuik-Change attachment carrier
Quik-change attachment mountingQuik-change attachment mounting

The quik-change attachment carrier allows for fast, easy removal and mounting of attachments without tools.

With the BW15872 parking stand kit, the 300E Loader can be quickly and easily removed from the tractor without tools.



Similarly, the BW16127 parking stand kit allows for the 400E Loader to be parked from the tractor.



Instructions for attaching the loader



Instructions for detaching the loader



The kit includes the following:

  • Parking stands
  • Handled pins
  • Hydraulic hoses
  • Quick-couplers
  • Mounting bracket and hardware
Parking stand installedParking stand installed
Quick disconnect connectedQuick disconnect connected
Boom pins installedBoom pins installed

Specifications


Compare the specifications of up to 4 models

Key Specs 300e-loader
Current Model
Maximum lift height (A)2140 mm
84 in.
Lift capacity at full heightMeasured at pivot (U)
539 kg
1186 lb
Measured at 500 mm ahead of pivot (V)
384 kg
845 lb
Boom breakout forceMeasured at pivot (Y)
760 kg
1704 lb
Measured at 500 mm ahead of pivot (Z)
537 kg
1204 lb
Bucket rollback force capacityAt ground-level line (ZZ)
634 kg
1422 lb
Clearance at full height - bucket dumped (C)1596 mm
63 in.
Dump angle, degrees (E)43.8 degree (angle)
Rollback angle, degrees (G)31.4 degree (angle)
Tractor
Model3025E, 3032E, 3038E
Front tire25x8.50-14 4PR R4
Rear tire15.00-19.5 4PR
Front axle configuration
Wheelbase1595 mm
62.8 in.
Pump capacity5.3 gpm
Rated pressure2495 psi
Loader
Base weight306.4 kg
Leveling configuration
Bucket usedMaterials - 1550 mm
Bucket weight93 kg
205 lb
Lift capacity at full heightMeasured at pivot (U)
539 kg
1186 lb
Measured at 500 mm ahead of pivot (V)
384 kg
845 lb
Lift capacity at 59 in. (1500 mm)Measured at pivot (W)
588 kg
1294 lb
Measured at 500 mm ahead of pivot (X)
444 kg
977 lb
Boom breakout forceMeasured at pivot (Y)
760 kg
1704 lb
Measured at 500 mm ahead of pivot (Z)
537 kg
1204 lb
Bucket rollback force capacityAt maximum height (VV)
639 kg
1433 lb
At 59-in. (1500-mm) lift height (XX)
809 kg
1814 lb
At ground-level line (ZZ)
634 kg
1422 lb
DimensionsMaximum lift height (A)
2140 mm
84 in.
At full height - bucket level(B)
1979 mm
78 in.
At full height - bucket dumped (C)
1596 mm
63 in.
Overall length (I+F), ft (m)2.9 m
9.5 ft
Overall height in carry position (J)161 mm
6 in.
Digging depth (H)131 mm
5 in.
ReachAt maximum height (D)
603 mm
24 in.
At ground level - bucket level (F)
1369 mm
54 in.
Bucket angleDump angle, degrees (E)
43.8 degree (angle)
Rollback angle, degrees (G)
31.4 degree (angle)
Dump angle, ground
122 degree (angle)
Cycle timesLoader raise, seconds
3.31 seconds
Loader lower, seconds
2.75 seconds
Bucket dump, seconds
1.75 seconds
Bucket rollback, seconds
1.88 seconds
