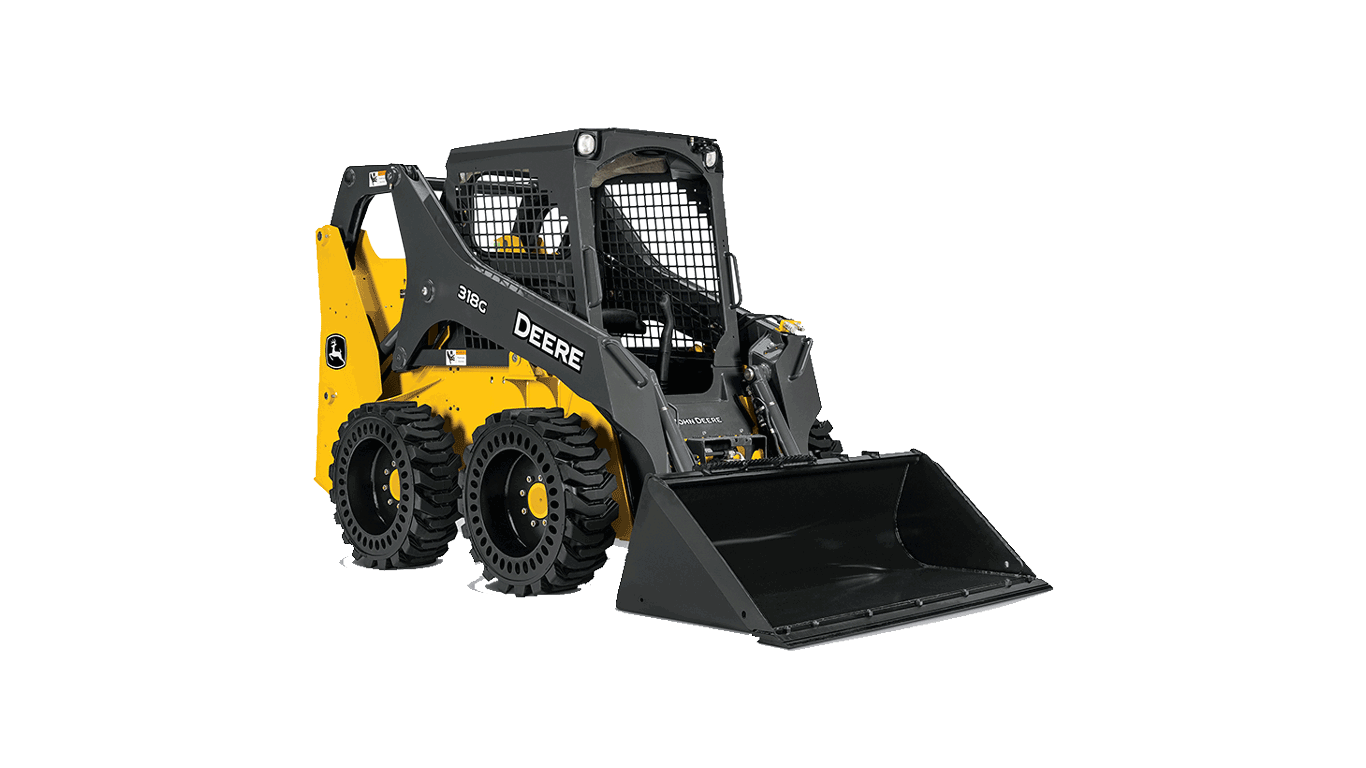

318G SKID STEER

Skid Steer

  • Rated Operating Capacity: 883 kg (1,945 lb.)
  • Gross Horsepower: 48.5 kW (65 hp)
  • Net Horsepower: 45.6 kW (61 hp)
  • Operating Weight: 2,940 kg (6,475 lb.)

View Product Brochure



Features



The vertical-lift boom offers more lift height and reach at the top of the lift path, for more stability and truck-loading ability.

The low center of gravity and superior balance provide exceptional agility and stability on slopes.

Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.

Large coolers provide increased heat rejection for superior performance in severe, high-load conditions. Engine-mounted, belt-driven cooling fan delivers efficient, reliable performance.

The low center of gravity and superior balance provide exceptional agility and stability on slopes.

Larger entryways with swing-out doors make it easier to get in, get comfortable, and get on with it. Inside, there’s more productivity-enhancing foot- and legroom.

Electrohydraulic (EH) joysticks are standard.

Generous tank capacity and fuel-efficient diesels enable day-long operation, letting you accomplish more between fill-ups.

Swing open the rear door and tilt up the hood for convenient ground-level access to dipsticks, fuel- and fluid-filler necks, and filters.

Specifications


Compare the specifications of up to 4 models

DESCRIPTION 318g-skid-steer
Current Model
DRIVELINE
Engine ManufacturerYanmar
Engine Model4TNV86CHT
Emission RatingTier 4
AspirationTurbo
Displacement, ltr (Inches�)2.1 (128)
Rated Engine Speed, rpm2600
SAE Net Power, kW (hp)45.6 (61)
SAE Gross Power, kW (hp)48.5 (65)
Max. Gross Torque, Nm (lbf / ft)207 (153)
Drive Chain Rating [ANSI]80 - HD
Tire size - Standard10 x 16.5
DIMENSIONS
Length - No Bucket, mm (inches)2630 (103)
Length - With Bucket, mm (inches)3240 (127.6)
Width - No Bucket, mm (inches)1600 (62.9)
Overall Height, mm (inches)1960 (77.2)
Ground Clearance, mm (inches)180 (7)
Wheelbase, mm (inches)1050 (41.5)
Rear Departure Angle, �22.3
Height to Hinge Pin, mm (inches)3050 (120)
Dump Angle, �42
Dump Height - Maximum, mm (inches)2400 (94.3)
Reach - Max Dump Height, mm (inches)860 (34)
Rollback - Ground Level, �30
CAPACITIES
PERFORMANCE
Rated Operating Capacity - Optional Counterweight, kg (lbs)951 (2095)
Rated Operating Capacity, kg (lbs)883 (1945)
Tipping Capacity (SAE), kg (lbs)1766 (3890)
Axle Torque - Maximum, Nm (lbf / ft)6459 (4764)
Speed - Maximum, kph (mph)11.1 (6.9)
Speed - Maximum Option, kph (mph)16.3 (10.1)
Breakout - Lift, kN (lbf)22.2 (5000)
Breakout - Bucket, kN (lbf)26.6 (6000)
Hydraulic Power, kW (hp)23.159 (31)
Pump Output, lt/min (gallons (US) / min)59 (16)
System Pressure, bar (PSI)237.87 (3450)
WEIGHTS
