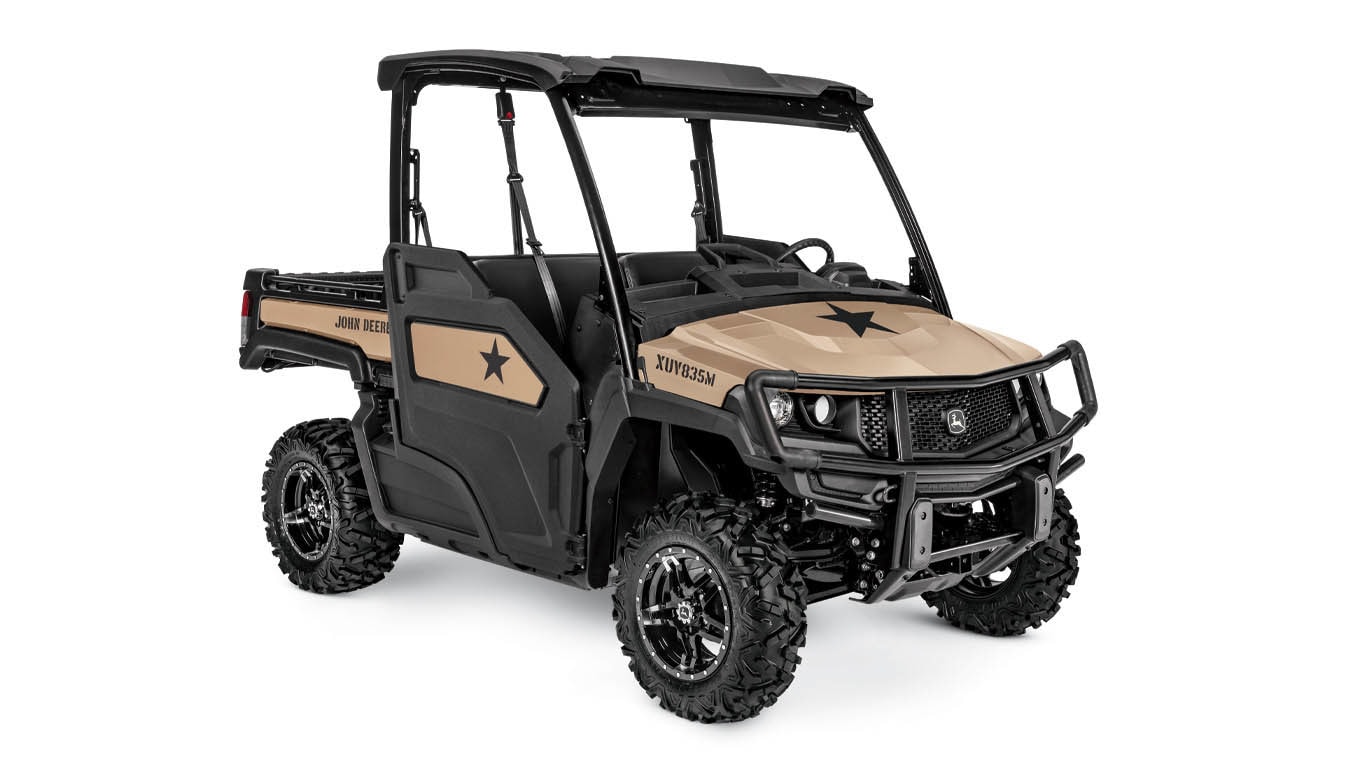

XUV835M HONOR EDITION UTILITY VEHICLE
Crossover Utility Vehicle
- Three person cockpit with half doors
- Power steering with sport steering wheel

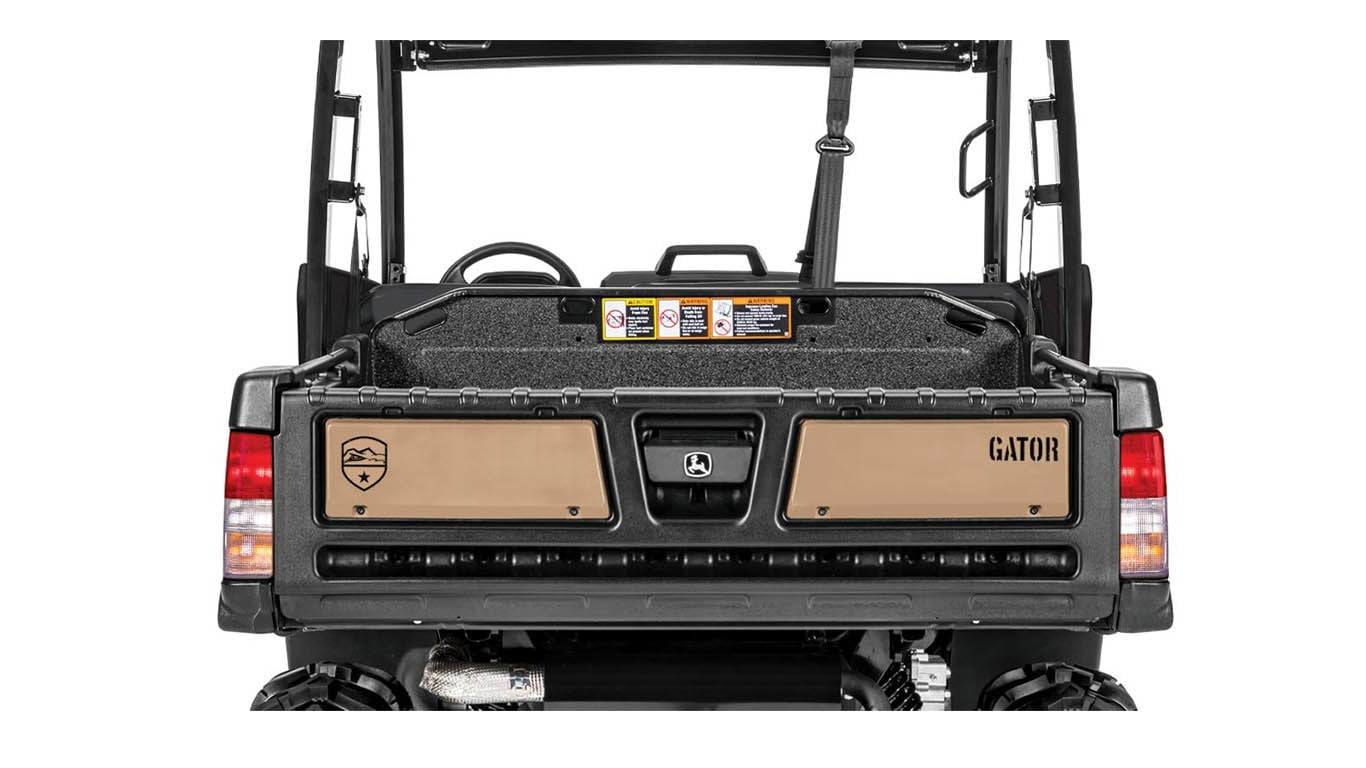

- Cargo box power lift, brush guard and black alloy wheels
- Up to 4,000-lb towing capacity
View Product Brochure
Features
Specifications
Compare the specifications of up to 4 models
| Key Specs | xuv835m-honor-edition-utility-vehicle Current Model |
|---|---|
| Engine power | 40.3 kW 54 hp |
| Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
| Cargo box capacity (weight) | 454 kg 1000 lb |
| Towing capacity | Up to 1814 kg 4000 lb |
| Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
| Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Final drive | Park, high, low, neutral, reverse transaxle |
| Four wheel drive | Dash switch actuated four-wheel drive system |
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
| Engine | |
| Type | 4-cycle gas, electronic fuel injection (EFI) |
| Displacement | 812 cc |
| Power | 40.3 kW 54 hp |
| Cooling system | Liquid |
| Drivetrain | |
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure |
| Final drive | Park, high, low, neutral, reverse transaxle |
| Four wheel drive | Dash switch actuated four-wheel drive system |
| Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock |
| Descent control | Yes |
| Suspension | |
| Front | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
| Rear | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Brakes | |
| Type | Front/rear hydraulic disc with twin piston front calipers |
| Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
| Tires / Wheels | |
| Front | 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
| Rear | 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
| Dimensions / Capacities | |
| Wheelbase | 2146 mm 84.5 in. |
| Weight | With fuel and fluids: 868 kg 1913 lb |
| Length | 3228 mm 127 in. |
| Width | 1618 mm 63.7 in. |
| Height | 1987 mm 78.2 in. |
| Tread centers | Front: 1341 mm 52.8 in. Rear: 1259 mm 49.6 in. |
| Ground clearance | 284 mm 11.2 in. |
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
| Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
| Cargo box capacity (weight) | 454 kg 1000 lb |
| Payload capacity | 677 kg 1493 lb |
| Towing capacity | Up to 1814 kg 4000 lb |
| Hitch | Standard receiver: 5.1 cm 2 in. |
| Features | |
| Color | Desert sand |
| Power steering | Yes |
| Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V |
| Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) |
| Storage | Total: 97.8 L 25.8 gal. Four cup holders: 1.3 L 0.3 gal. Center tray: 1.2 L 0.3 gal. Three dash bins: 5.0 L 1.3 gal. Storage pocket: 1.4 L 0.4 gal. Glove box: 3.8 L 1.0 gal. Under seat: 55.3 L 14.6 gal. Optional under hood: 30.0 L 7.9 gal. |
| Seating | Black vinyl 40/60 split three-passenger bench |
