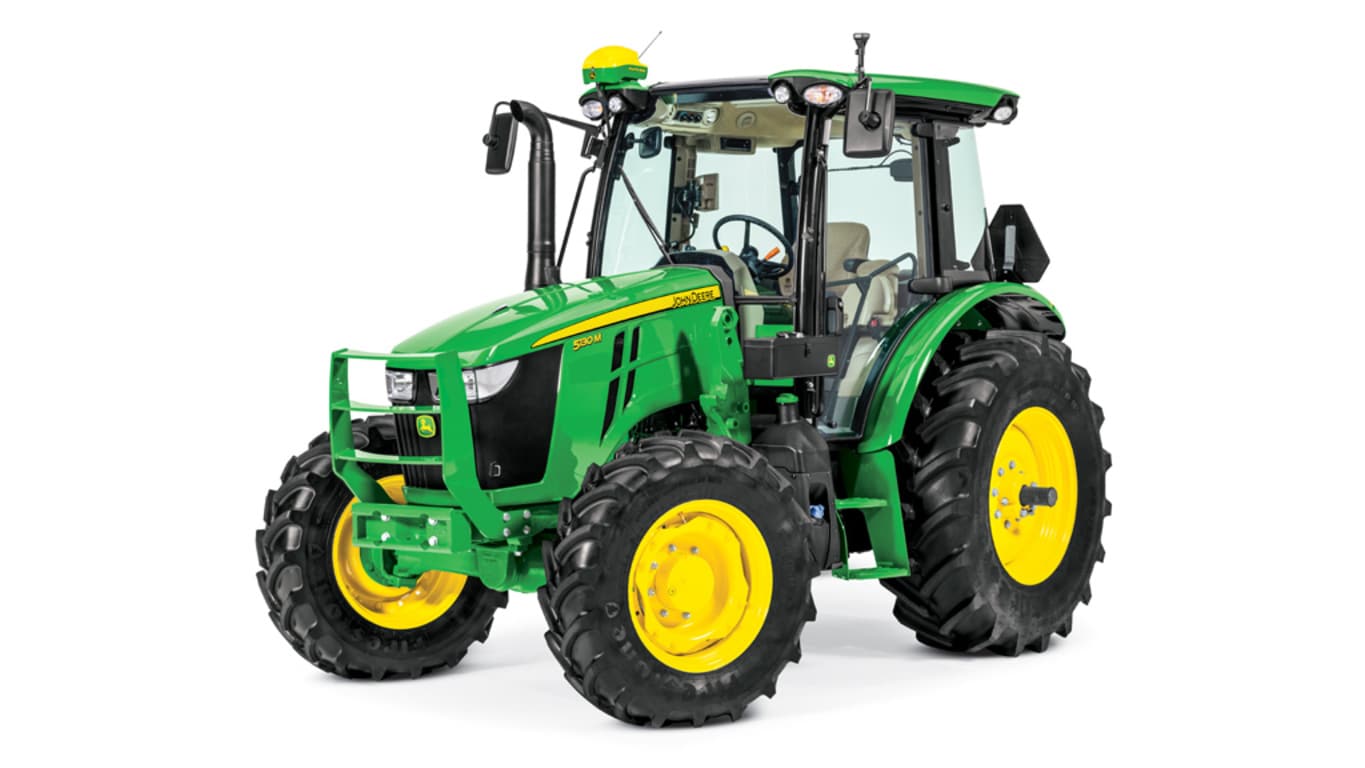

5130M UTILITY TRACTOR

Utility Tractor

  • PowrQuad™ PLUS or Powr8™ transmission options
  • Choose climate-controlled cab or open station
  • Hitch lift capacity starting at 6,975 lb (3,164 kg) and optional up to 7,868 lb (3,569 kg)

View Product Brochure



Features



Specifications


Compare the specifications of up to 4 models

Key Specs 5130m-utility-tractor
Current Model
Engine descriptionJohn Deere PowerTech™ 4045 EWL
Engine displacement4 cylinder: 4.5 L
276 cu in.
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)At 2200 rpm per ISO 97/68/EC: 95.8 kW
128.5 hp
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)99.9 kW
133.9 hp
Rated PTO power (hp SAE)At 2100 rpm per SAE: 84.5 kW
115 PTO hp
Maximum PTO power
Transmission typeStandard: PowrQuad™ PLUS 16F/16R
Optional: Powr8™ 32F/16R
Powr8™ 32F/16R with creeper
Hydraulic pump rated output97 L/min
25.6 gpm
Rear hitch category (SAE designation)Category 2; convertible to 1
Base machine weight3964 kg (8,740 lb)
Engine specifications
DescriptionJohn Deere PowerTech™ 4045 EWL
Engine type4045HLV82
Engine family
Rated speed2200 rpm
AspirationTurbocharged/air-to-air aftercooled
Cylinders linersWet sleeved
Emission levelFinal Tier 4
After treatment typeDOC/SCR
Displacement4 cylinder: 4.5 L
276 cu in.
Engine performance
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)At 2200 rpm per ISO 97/68/EC: 95.8 kW
128.5 hp
Rated PTO power (hp SAE)At 2100 rpm per SAE: 84.5 kW
115 PTO hp
Maximum PTO power
Intelligent Power Management (IPM)
Power boostAt 1900 rpm: 4 percent
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)99.9 kW
133.9 hp
Engine peak torqueAt 1600 rpm: 541 Nm
399 lb-ft
Drawbar power
PTO torque riseAt 1600 rpm: 30 percent
Fuel injection system and control
Air cleaner type
Transmission
TypeStandard: PowrQuad™ PLUS 16F/16R
Optional: Powr8™ 32F/16R
Powr8™ 32F/16R with creeper
ReverserLeft hand, electrohydraulic
Clutch; wet/dryWet
CreeperPowr8™ 32F/16R with creeper
Hydraulic system
TypeOpen center
Pump rated output97 L/min
25.6 gpm
Available flow at a single rear SCV73 L/min
19.3 gpm
Available flow at front SCVs
Number of rear selective control valves (SCVs)Two, up to three total
Number of mid selective control valves (SCVs)Two, up to three total
Number of front selective control valves (SCVs)
Joystick SCV controlOptional
Auxiliary hydraulic features
SCV controlMechanical
Rear hitch
Hitch draft control load sense typeElectrohydraulic
Remote control valves availableStandard: Two
Optional: Three
Hitch category (SAE designation)Category 2; convertible to 1
Maximum lift capacity behind lift pointsStandard: 3164 kg
6975 lb
Optional: 3569 kg
7868 lb
Lift capacity at standard frame
Sensing typeLower link
Rear axle differential lockElectrohydraulic
Drawbar
Drawbar categoryCategory 2
Maximum vertical loadRoad/field use (250-mm extended): 1450 kg
3197 lb
Field use (350-mm extended): 1200 kg
2646 lb
Field use (400-mm extended): 1200 kg
2646 lb
Rear power take-off (PTO)
TypeIndependent, 34.9 mm (1.375 in)
Standard: 540/540 Economy (6 spline)
Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft
Engine rpm (at rated PTO speeds)540 at 2100 rpm
540E at 1645 rpm
1000 at 2100 rpm
Economy PTO speeds
Reverse PTO speeds
Multispeed PTO option availability
Ground speed PTO option availability
PTO actuationElectrohydraulic
Front hitch
CategoryCategory 2
Electric power
Standard lift capacity1931 kg
4257 lb
Front power take-off (PTO)1000 rpm (21 spline) 34.9 mm (1.375 in.)
PTO speed1000 at 2200 rpm
Rear axle
TypeStandard: Flange
Optional: Rack-and-pinion (Bar)
Final drive typeInboard planetary
Differential controlsElectrohydraulic
Axle type
Brakes, type and controlHydraulic wet disc
Rear differential lock
Load rating
Front axle
Type
Front axle differential lock
Load rating
Tires
RearMFWD: 18.4R30 (460/85R30) R1W Radial
Wheel tread rangeMFWD: front: 1299-1997 mm
51.1-78.6 in.
rear: 1350-2286 mm
53.1-90 in.
Turning radius with brakesMFWD: 3.85 m
12.6 ft
Turning radius without brakesMFWD: 4.0 m
13.1 ft
Central Tire Inflation System (CTIS)
Front
Tracks
Tread spacing
Drive type
Track width
Mid-rollers
Steering
Brakes
Primary brake (foot brake)
Secondary brake
Park lock
MFWD braking
Front axle brakes
Auxiliary brakes
Hydraulic trailer brakes
Pneumatic trailer brakes
Electrical system
Alternator sizeCab: 120 amp
ISOBUS/GreenStar™ Ready: 200 amp
Battery options12 V
Working lightsStandard: Halogen
Optional: LED
Type of bulb in headlight (Halogen, Zenon, LED)Standard: Halogen
Optional: LED
Type of bulb in beacon (Halogen, Zenon, LED)Optional: LED
dB(A) rating for backup alarm
Total cold cranking amps
Operator station
Rollover protective structure, OOS
SeatStandard: Mechanical suspension
Optional: air ride or premium air ride
Cab suspension
Instructional seatOptional
DisplayDigital Dash Display with three liquid crystal displays (LCDs)
RadioOptional
Inner cab volume
dB(A) rating78 dBA
Cab glass area
Safety glass rating
Front visibility
Dimensions
WheelbaseMFWD: 2350 mm
92.5 in.
Overall width
Overall length
Overall height
Drawbar clearance
Front axle center
Approximate shipping weight, Open;CabMFWD: Cab: 4175 kg
9185 lb
Weight
Base machine weight3964 kg (8,740 lb)
Maximum ballast level
Maximum permissible weight
Capacities
Crankcase oil volume
Fuel tankStandard: Cab: 165.4 L
43.7 U.S. gal.
Diesel exhaust fluid (DEF) tank12 L
3.17 U.S. gal.
Cooling system
Transmission-hydraulic system
Serviceability
Interval for engine oil change
Interval for hydraulic/transmission oil change
Interval for engine coolant change
Loaders
Loader
Lift capacity at full height
Maximum lift height
Leveling type
Precision AG
GuidanceOptional: AutoTrac™ Ready
Telematic
Remote diagnostics
Miscellaneous
AutoTrac readyOptional
ISOBUS readyOptional
CommandCenter video inputs
Immobilizer
Side slope rating
Uphill/downhill slope rating
Country of manufacturePune, India
