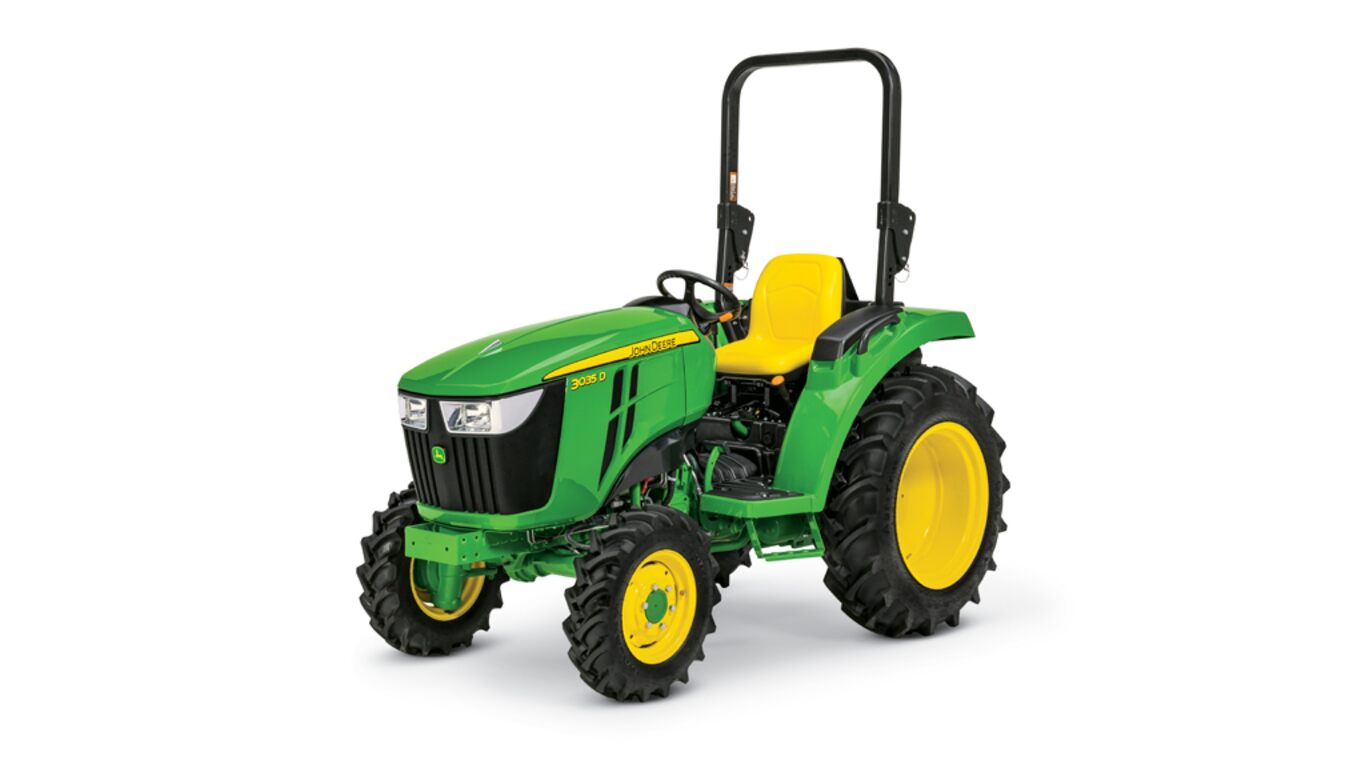

3035D

Compact Tractor

  • Standard 4wd for Maximum Traction
  • Heavy duty drive train with a gear drive transmission 8F/8R
  • On-board diagnostics including Service Advisor
  • Category 1 3-Pt Hitch compatible with dozens of attachments

View Product Brochure



Features



Clean and simple operator's stationClean and simple operator's station

An uncluttered design gives operators of all sizes plenty of room to be comfortable. Color-coded controls are located on either side of the operator.

  • Contoured, comfortable seat enhances operator comfort.
    • Seat position adjusts fore and aft
    • Seat flips forward for protection from the elements
  • Flat operator platform provides for easy entry to/exit from the tractor.
  • Folding Roll-Gard™ rollover protective structure (ROPS) and retractable seat belt increase operator safety.



Operator presence system:

  • If the operator leaves the seat when the forward/reverse and range lever are in gear, the engine shuts down.
  • If the operator leaves the seat when the power take-off (PTO) is engaged, the engine shuts down.
Left-side step
Left-side step for easy entry/exit Left-side step for easy entry/exit
  • The left-side step allows for easy access on and off the tractor.
  • Foot platform has a non-skid surface for sure footing.
Seat
SeatSeat

The thick, soft padding on this seat provides a smooth and comfortable ride.

  • Seat flips forward for protection from the elements.
  • Adjustable using the fore and aft lever located under the seat, the seat slides on ramped rails to provide comfortable access to all controls.
Instrumentation
Instrument panelInstrument panel

Easy-to-read instrument panel includes the following:

  • Tachometer
  • Low oil pressure indicator light
  • Battery discharge indicator light
  • PTO engagement indicator light
  • Signal/hazard lamp indicator lights
  • Multi-function liquid crystal display (LCD) display (hours, filter cleaning information, PTO speed etc.) Filter cleaning status indicator light
Fuel tank and gauge
Rear-mounted fuel tank and gaugeRear-mounted fuel tank and gauge

All 3D Series Tractors come standard with a fuel gauge that is easy to read from the operator's station to ensure operators do not run out of fuel. The fuel tank is also located on the rear of the tractor to allow for easy refill.

Safety

Operator presence switch (OPS) in seat:

  • OPS requires the operator to be in the seat to operate the transmission or PTO.
  • ROPS is designed to meet or exceed American Society of Agricultural and Biological Engineers (ASABE) safety standards.
  • Reflective ROPS strips for better tractor visibility.
  • Seat belts are in base equipment on all John Deere compact utility tractors.
  • Key switch interlock prevents bypass starting.
  • Visual PTO warning light on the instrument panel alerts the operator when the PTO is running.
  • Turn signal and flashing warning lights operate according to ASABE standards.
  • Slow-moving vehicle (SMV) sign is provided for road transport.
Park brake
Park brakePark brake
  • Instrument panel has an indicator light for the park brake.

Two-post Roll-Gard ROPS
Roll-Gard ROPSRoll-Gard ROPS

3D Series Tractors are equipped with Roll-Gard ROPS. These folding ROPS meet the ASABE standards for compact utility tractors.



NOTE: The use of seat belts is recommended at all times when operating the 3D Series Tractor with folding ROPS.



An optional canopy is available to help protect the operator from the elements.

Optional rear SCVsOptional rear SCVs

3D Series Tractors can be equipped with a field-installed rear hydraulic remote kit, providing two additional hydraulic spools on the back of the tractor. This kit can be field installed on a tractor with a loader or without a loader.



The functions are completely separate from the loader. These rear remotes can be hooked up to a wide variety of implements and attachments such as follows:

  • Hydraulically angled blade
  • Hydraulically controlled chute/spout on a 3-point hitch-mounted snow blower
  • Hydraulic scarifiers on a box blade
  • Many other hydraulic rear attachments

This versatile kit gives 3D Series Tractor operators the options they desire for putting their tractors into a wide range of tasks.



The first spool is equipped with a float position, giving the operator the ability to contour the landscape and improve the final grade with certain implements.



NOTE: Neither of the spools in this kit are equipped with a detent position; therefore, they should not be hooked up to anything with a motor, as the valve was not designed to be run open. The kit is designed for momentary, on-demand hydraulic flow such as moving a cylinder.



The approximate installation time is 1 hour to 1.5 hours.

iMatch Quick-HitchiMatch Quick-Hitch
iMatch Quick-Hitch with rotary cutter hookupiMatch Quick-Hitch with rotary cutter hookup
iMatch  Quick-Hitch (LVB25976)iMatch Quick-Hitch (LVB25976)
iMatch Quick-Hitch with rotary cutter hookup (LVB25976)iMatch Quick-Hitch with rotary cutter hookup (LVB25976)

One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the American Society of Agricultural and Biological Engineers (ASABE) Category 1 Standard S278.6 for quick-attach hitches.

  • All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

  • Upper bushing
    • Inside diameter: 1.93-1.95 cm (0.76-0.77 in.)
    • Outside diameter: 3.15-3.18 cm (1.24-1.25 in.)
  • Lower bushing
    • Inside diameter: 2.24-2.26 cm (0.88 to 0.89 in.)
    • Outside diameter: 3.63-3.66 cm (1.43 to 1.44 in.)

Regular service and maintenance are essential to the performance, productivity, and longevity of the tractor.

  • Easy access to most regular service points minimizes service time.

  • Tractors are equipped with extensive onboard self-diagnostic capabilities and are fully compatible with the John Deere-exclusive Service ADVISOR™ system.

  • Hydraulic oil service interval increased to 1200 hours when using Hy-Gard™ products. Hydraulic oil filter will need to be changed every 400 hours.

  • Fuel tank is located on the rear of the tractor to allow for easy access when fueling.

Fuel tank on rear of the tractorFuel tank on rear of the tractor
  • Four quarter turn fasteners allow operators to easily remove the engine side panels to access the engine compartment
Easy access to engine compartmentEasy access to engine compartment
  • Daily service requirements are minimal and simple to accomplish. Most service interval requirements can be performed with a basic understanding of procedures and common tools.



Daily service is quick and easyDaily service is quick and easy

All items in the daily service schedule can be performed without the use of tools:

  • Engine oil, hydraulic oil, coolant level, and the water separator can be conveniently accessed.

  • The engine can be easily accessed by simply raising the hood for more periodic maintenance checks.

NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.

Specifications


Compare the specifications of up to 4 models

Key Specs 3035d
Current Model
Engine power (gross)25.5 kW
34.7 hp
Power take-off (PTO) power23 kW
30.8 hp
Steering hydraulics16.8 L/min
4.4 gpm
Implement hydraulics22.4 L/min
5.9 gpm
Hitch typeCategory 1
Lift capacity, 24-in. behind link arms757.4 kg
1670 lb
Standard transmission; forward/reverse8F/8R synchromesh shuttle shift gear transmission
Cruise controlNo
Approximate shipping weight (open-station; cab)1275 kg
2811 lb
Wheelbase157.4 cm
62 in.
Engine
Family
ManufacturerYanmar
Engine model3TNV88C-KJPT
Engine power (gross)25.5 kW
34.7 hp
Power take-off (PTO) power23 kW
30.8 hp
Rated engine speed2400 rpm
Type
Injection pump typeHigh pressure common rail direct injection
AspirationNatural
Emissions complianceFinal Tier 4
Cylinders/displacement3 / 1.64 L
3 / 100.2 cu in.
Number of cylindersThree
Cylinder linersCast-in-block
Bore and stroke88 x 90 mm
3.46 x 3.54 in.
Compression ratio19.1:1
LubricationPressurized
Cooling systemWater pump
Air cleanerDual element
Engine torque at rated speed87 Nm
64.2 lb-ft
Fuel tank capacity36.7 L
9.7 U.S. gal.
Electrical
Battery size600 CCA
Alternator (12-V)55 amp
Starter size1.4 kW
1.9 hp
Fuel system
TypeHigh pressure common rail direct injection
Fuel consumption
Transmission
Standard transmission; forward/reverse8F/8R synchromesh shuttle shift gear transmission
Optional transmission; forward/reverse
Left-hand reverserYes
Transmission gear ranges4 gears and 2 ranges
Final driveSpur Gear
BrakesWet disc
SteeringPower steering
Clutch, wet/dry
Clutch disk diameter wet clutch
Axle capacityFront
880 kg
1940 lb
Rear
1600 kg
3527 lb
CreeperNo
Cruise controlNo
Differential lockYes
Drawbar maximum vertical load
Hydraulics
TypeOpen center
Pump rated outputSteering
16.8 L/min
4.4 gpm
Implement
22.4 L/min
5.9 gpm
39.2 L/min
10.3 gpm
Pump typeSingle gear
Maximum operating pressure172.4 bar
2500 psi
Draft control sensingPosition control
Remote control valves availableUp to two (optional)
3-point hitch
TypeCategory 1
Lift capacity, 24-in. behind link arms757.4 kg
1670 lb
Power take-off (PTO)
Standard540 rpm at 2400 rpm
Optional
ControlMechanical
ClutchTransmission
Brake (for mid and rear PTO)Wet disc
Engagement method
Fluid capacities
Crankcase with filter4.5 L
4.8 qt
Transmission and hydraulic system33 L
34.8 qt
Final drive
TypeBull Gear
Differential lock
Operator station
Rollover protective structureType
Foldable
ASABE S478
Platform - flat/straddleSemi-flat
Gear shift location - console/floorRight-hand side
Cab
Compliance
Visibility
Air conditioning, temperature differential
Doors
Noise rating
Seat equipment
Dimensions
Wheelbase157.4 cm
62 in.
Front axle clearance35 cm
14 in.
Turning radius with brakes1.63 m
5.3 ft
Turning radius without brakes
Limited slip differential
Approximate shipping weight (open-station; cab)1275 kg
2811 lb
Tires
FrontFarm - 7-14
Turf - 27x8.5-15
R4 - 25x8.5-14
RearFarm - 11.2-24
Turf - 41x14-20
R4 - 15-19.5
Front tread range
Rear tread spacing
Miscellaneous
ToolboxYes
Tilt steering wheelNo
12-V OutletNo

Accessories and Attachments

Ballast

Ballast box shown with extensionBallast box shown with extension

The ballast box can be used to carry additional ballast for greater tractor stability.


A 9-in. high extension can be added to ballast box for even greater capacity.


A bushing kit is required for the ballast box to be used with the iMatch™ Quick Hitch.

BW14701 ballast box shown with BW15074 extensionBW14701 ballast box shown with BW15074 extension
WP16011033 large ballast boxWP16011033 large ballast box

Ballast boxes can be used to carry additional ballast for greater tractor stability.



NOTES:

1. Ballast box BW14701 has Category 1 pins and is compatible with a Category 1, 3-point hitch. It can be made Category 1 quick-hitch (iMatch™ hitch) compatible by adding BW15056 bushing kit.

2. The large ballast box (WP16011033) has Category 2 pins and is compatible with a Category 2, 3-point hitch. The large ballast box (WP16011033) is not quick-hitch-compatible.

3. Requires (2) R66432 bushing, (1) M115827 quick-lock pin, (1) R58262 pin, and (1) T12553 bushing to convert Category 1 ballast box to Category 2.

Draft Link

Drawbar

Engine

Engine coolant heater kitEngine coolant heater kit

Attached to the engine cylinder block, the engine coolant heater plugs into a 120-V electrical outlet to warm the engine for fast cold-weather starts.



NOTE: It is recommended to install optional engine coolant heater, transmission oil heater, and battery heating pad (A22400P - ordered through A and I) if operating machine in temperatures below -18 ⁰C (0⁰F).

Engine

Exhaust

Front Weights

Front Weights

Front Wheels And Tires

25 x 8.50 - 14 (6 PR, R4 Industrial, 2 Position) Front Wheels & Tires - BLV10851

27x8.50-15 (6PR, R3 Turf, 2 Position) Front Wheels & Tires - BLV10849

7-14 (6PR, R1 Bar, 2 Position) Front Wheels & Tires - BLV10860

Hydraulics

Lighting

Rear work lightRear work light

This kit provides light to the rear of the tractor for evening work.



For open-station tractors only, this kit contains individual light.



Allow 30 minutes to install.



NOTE: Kit includes one rear light.

NOTE: Both the rear- and forward-work lights are compatible together and with the light-brush guard kits. The light kit contains a two-to-four pigtail that plugs into the main harness, as if only plugging one set of lights, providing two sets of plugs to use for forward and rear-work lights. The forward light is installed on top of the brush guard, and the rear light is installed inside the ROPS using the bolt holding the light and brush guard on.

NOTE: For 102E3 and 1026R Tractors – kit interference during backhoe operations (mounted inside ROPS) – use LVB25546 forward-light kit as an alternative.

#

The forward-lighting kit provides extra visibility when working in dark conditions. Lights attach to the brush guards located on the rollover protective structure (ROPS). Each kit contains two lights.



NOTE: Requires BLV10400 warning light brush guard kit and LVB26026 light kit harness. Not compatible with LVB25547 rear work light kit (1023E).



NOTE: Requires BLV10400 warning light brush guard kit. Not compatible with LVB25547 rear work light kit (1025R, 2025R, 2032R, 2038R, 3025E, 3032E, 3038E, 4105, 4044M, 4052M, 4066M).



NOTE: Requires BLV10620 premium warning light brush guard kit. Not compatible with LVB25547 rear work light kit (3033R, 3039R, 3046R, 4044R, 4052R, 4066R).

#
#

 Rollover protective structure (ROPS) mounted LED work lights

An optional LED work light kit is available for all open-station compact utility tractors. These lights provide extra visibility when working in dark conditions and have 180-degree rotation to face forward or backward. The kit contains two lights and the mounting hardware required for installation.

This lighting kit is mounted to the warning light brush guard kit, which is mounted to the ROPS and requires attachment BLV10400 for installation.

The halogen work light kit attachment is still available (LVB25546).

Shown on 4000 TEN Series TractorShown on 4000 TEN Series Tractor

ROPS warning-light brush guards protect turn signal/warning lights from damage caused by low branches on trees.

For open-station tractors only.

Two guards included in each kit.

Shown on 4000 TEN Series TractorShown on 4000 TEN Series Tractor

ROPS warning-light brush guards protect turn signal/warning lights from damage caused by low branches on trees.

For open-station tractors only.

Two guards included in each kit.

Miscellaneous

Safety chain supportSafety chain support
  • Provides necessary tractor parts to accept implement safety chains
  • Attaches to tractor drawbar ahead of hitch pin
  • Order safety chain from implement section

Miscellaneous

Open Operator's Station

Standard canopy mounted to 5M Series ROPSStandard canopy mounted to 5M Series ROPS

The standard canopy attaches to the tractor's rollover protective structure (ROPS) to protect operators from inclement weather.



Additional mounting brackets and hardware bundles are required to install the canopy to the ROPS.

Standard canopy kitStandard canopy kit
Deluxe canopy kitDeluxe canopy kit

Mounting brackets and hardware bundles are required to adapt a canopy to the tractor rollover protective structure (ROPS).

Large Seat Cover - LP95233

Power Take-off (Pto)

Rear Axle

Rear Wheel Weights

Attaching Hardware for Rear Wheel Weight - BM19951

Attaching Hardware for Starter Rear Wheel Weight, 60 lb for 16 in. and 19.5 in. Wheel - BM19938

Rear Wheel Weight, 60 lb (27.2 kg) - BM17965

Rear Wheels And Tires

Provide added traction in snowy and icy conditions.

Provide added traction in snowy and icy conditions.

Rear Wheels and Tires

11.20-24 (6PR, R1 Bar, 1 Position) Rear Wheels & Tires - BLV10937

15-19.5 (6PR, R4 Industrial, 1 Position) Rear Wheels and Tires - BLV10936

41x14-20 (4PR, R3 Turf, 1 Position) Rear Wheels & Tires - BLV10942

Three-point Hitch

3-Point Hitch Tractor Receiver Hitch - LP25001

One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch:

  • All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.



NOTE: All implements (box blades, tillers, rear blades, landscape rakes, etc.) require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier.

iMatch Quick-HitchiMatch Quick-Hitch
iMatch Quick-Hitch with 3-Point Hitch Disk HarrowiMatch Quick-Hitch with 3-Point Hitch Disk Harrow

One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements designed to meet the ASAE Category 1 Standard S278.6 for quick-attach hitches.

  • All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

NOTE: All implements (box blades, tillers, rear blades, landscape rakes, etc.) require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

  • Upper bushing
    • Inside diameter of 0.76 in. to 0.77 in. (19 mm to 20 mm)
    • Outside diameter of 1.24 in. to 1.25 in. (31 mm to 32 mm)
  • Lower bushings
    • Inside diameter of 0.88 in. to 0.89 in. (22 mm to 23 mm)
    • Outside diameter of 1.43 in. to 1.44 in. (36 mm to 37 mm)
iMatch Quick-Hitch dimensions
iMatch dimensionsiMatch dimensions



Dimensions designated

Millimeters (minimum)

Millimeters (maximum)

'A' lower socket inside span

686.56

689.61

'B' lower socket width

27.94

29.46

'C' lower socket diameter

38.1

38.61

'D' upper hook vertical spacing

375.41

377.96

iMatch Quick-Hitch implement geometry
iMatch implement dimensionsiMatch implement dimensions



Dimensions designated

Millimeters (minimum)

Millimeters (maximum)

'A' lower hitch pin or adapter outside diameter

36.33

36.58

'B' lower hitch pin inner shoulder spread

681.0

684.3

'C' lower hitch pin outer shoulder spread

750.83

753.88

'D' lower hitch pin inner/outer shoulder diameter

50.55

63.75

'E' coupler mast pin diameter

31.50

31.75

'F' coupler mast pin vertical spacing

379.48

382.53

Weights
